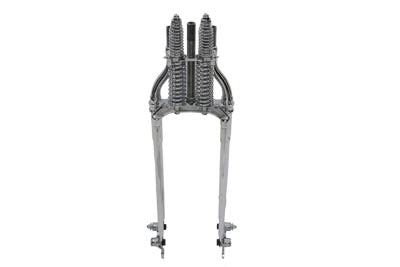

49-2417 22 Inline Spring Fork Chrome +4 Reference #'s (if avaliable):
Unit features chrome front legs, chrome outer springs, chrome rockers and chrome rear leg.
Includes inner and outer springs, front and rear legs, 1" inline stem and offset outside mount rockers to utilize interchangeable wheel with lug bolt type drum and mechanical front brake drum, studs and bushings, spring rods with bushings. Some assembly may be required. These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look. Top clamp, neck races, and cone nut are not included. *NOTE: UPS may conside this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs. *NOTE: We measure from the top of the rear leg (tube), to the front axle center line.
Includes inner and outer springs, front and rear legs, 1" inline stem and offset outside mount rockers to utilize interchangeable wheel with lug bolt type drum and mechanical front brake drum, studs and bushings, spring rods with bushings. Some assembly may be required. These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look. Top clamp, neck races, and cone nut are not included. *NOTE: UPS may conside this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs. *NOTE: We measure from the top of the rear leg (tube), to the front axle center line.
|
EL 1936-1945 61" UL 1937-1945 74" and 80" FL 1941-1945 74" |
| Measurements | |||
|
|||
| V-Twin | |||
| Imported | |||
| 32 inch | |||
| without Shocks | |||
| 49-0235 - Rebuild Kit 49-0573 - Rod Acorn Nut Chrome 7706-2 - Cadmium Spring Rod Bushing |
|||
|
Unit is unpolished at the rear fork stem cross plate and at the front spring fork rod forging. *NOTE: Must order shock, ride control, axle assembly, top tree and bearing kit, as required. How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits, to the axle position. This is the effective length, as it is the legnth from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame height. This Spring Fork assembly accepts a 3/4" axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1" stem utilized tapered bearings for ease of installation. |
Can't find what you need? Need more info on fitment?
Look up the part numbers here. Just go to http://www.vtwinmfg.com and check out the full catalog, or download it here: http://www.vtwinmfg.com/catalogs/VTCatalog.pdf
Compare with your original for fitment. Many parts can be used universally for thousands of bikes. Please ask any questions and we can get you further details.
For more info just send us an email with the Year, Make and Model and what part you're looking for here: HiRevzLLC@gmail.com.
