4" Super Bullet Tweeter 250 Watts 1.5" Titanium 4-Ohm Vc

  • Sale
  • Regular price $49.95

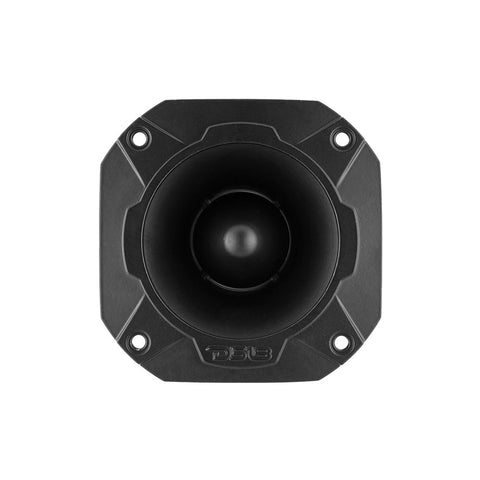

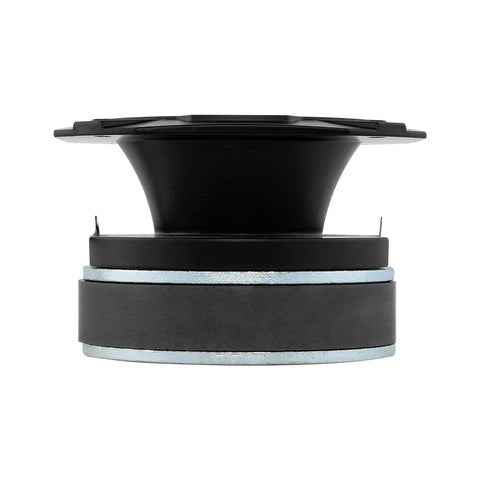

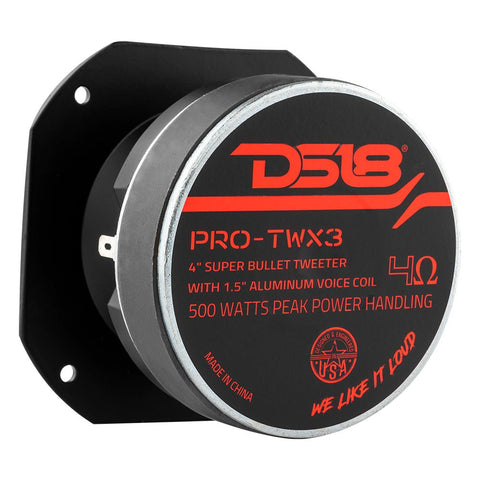

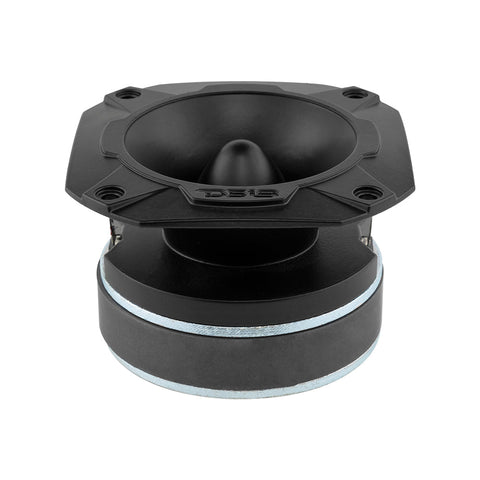

DS18 PRO-TWX3 4" Super Bullet Tweeter 480 Watts 1.5" Aluminum 4-Ohm Voice Coil - Sold as Single

The Pro TW series brings pro audio to a bright new level of elegance, clarity, and loudness.

These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time. The PRO-TWX3 has a beautiful black face with strong black on black frame.

This 4-ohm Super tweeter handles an enormous 125 watts AES handling and 250 Program watts, ensuring screaming loud mid and high range frequencies be acute and clear.

HighlightsĀ

  • 4" Nominal diameter Bullet black on black Pro-Audio Super tweeter.
  • AES Power Handling 125W
  • Program Power Handling 250W
  • Peak Power Handling 500W
  • Frequency Response: 3Khz- 20Khz
  • Voice Coil Diameter: 1.5"
  • Voice Coil Material: Aluminum
  • Impedance: 4-Ohm
  • Sensitivity: 98Db

  • Magnet Weight: 14Oz
  • Magnet Material: Ferrite
  • Mounting Depth: 2.36"
  • Recommended High Pass: 3Khz


Great For:

      • Car Audio
      • Pro Audio
      • Motorcycles
      • Home Studio
      • Hi-Fi Installation
      • Surround Sound
      • Bookshelf Speakers
      • Stunt Walls
      • DIY Projects


Technical Details

Ā PRO-TWX3 Product Manual

SPECIFICATIONS
Nominal Diameter 4ā€ / 102 mm
Nominal ImpedanceĀ  4 Ohms
AES Power Handling 125W
Program Power Handling 250W
Peak Power Handling 500W
Sensitivity (1w/1m)Ā  106 dB
Frequency Response 3K-20KHz
Recommended Hi Pass Crossover

3KHz

Replacement Diaphragm:

Ā PRO-TW3VC

BODY / FEATURES

Pair or Single

Single
Body Material Aluminum
Body Color / Finish Black
Bullet Material Aluminum
MOTOR
Voice Coil Diameter 1.5ā€ / 38 mm
Voice Coil Former MaterialĀ  Kapton
Winding MaterialĀ  CCAW
Diaphragm Material Titanium
Magnet Material Ferrite
Magnet WeightĀ  14 Oz

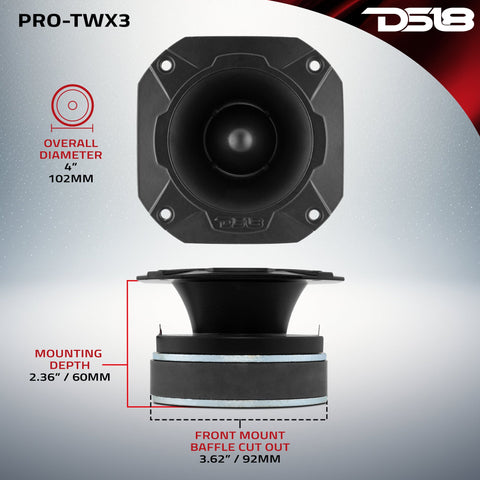

MEASUREMENT
Overall Diameter 4ā€/ 102 mm
Overall Depth 2.58ā€/ 65.5 mm
Front Mount Baffle Cutout 3.62ā€ / 92 mm
Mounting Depth 2.36ā€ / 60 mm
Motor Diameter 3.5" / 90mm
