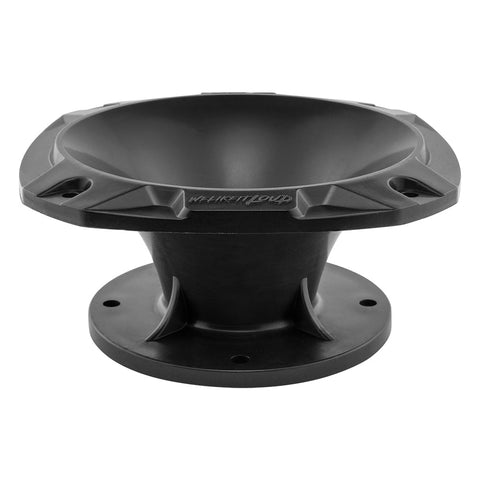

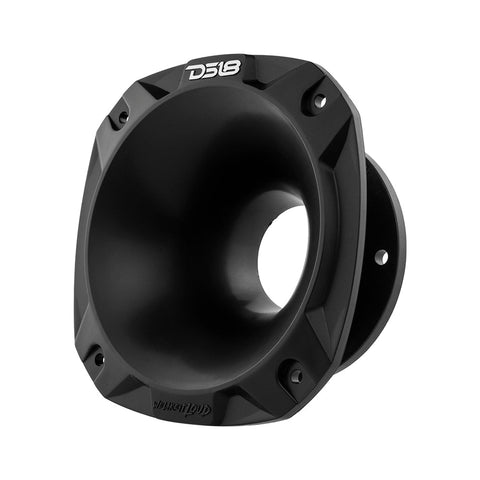

DS18 PRO-HP52 2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn
DS18’s PRO-HP52 is our latest addition to our series of short throated horns!
This waveguide has a mounting depth of 2.61” and a throat diameter of 2” for extreme directional sound that can fit anywhere!
This short horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage as well as a brighter selection of colors to choose from!

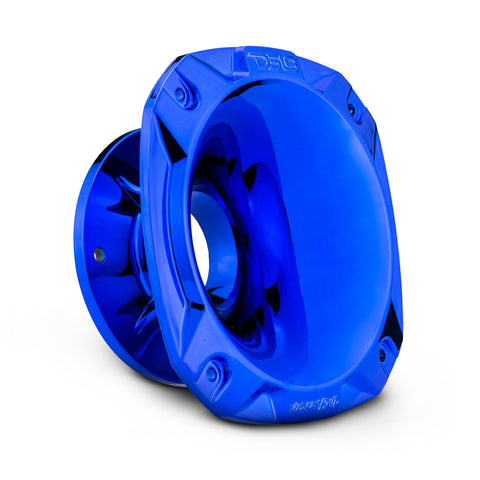

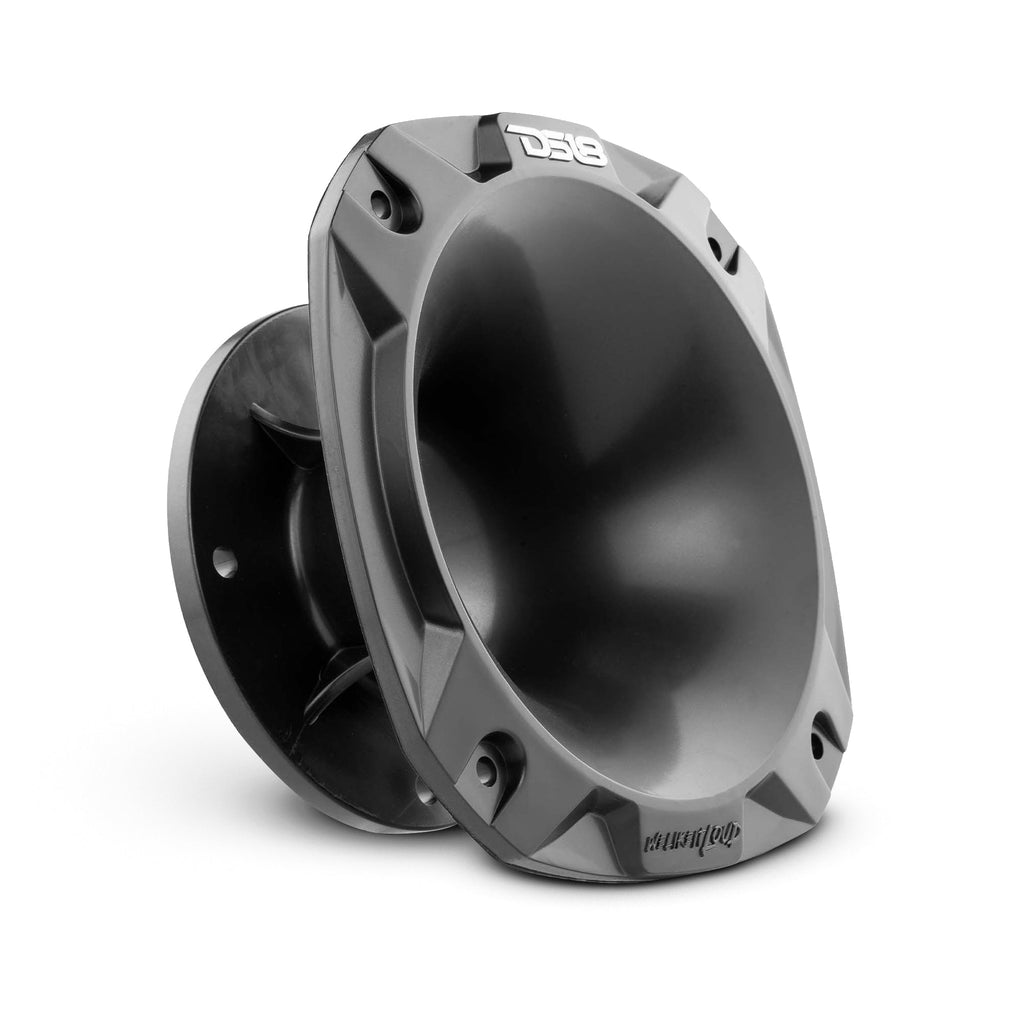

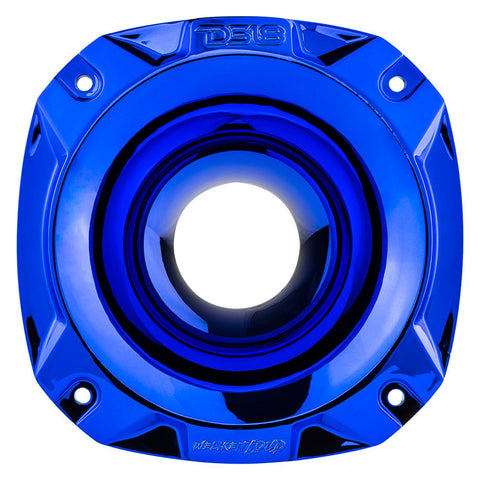

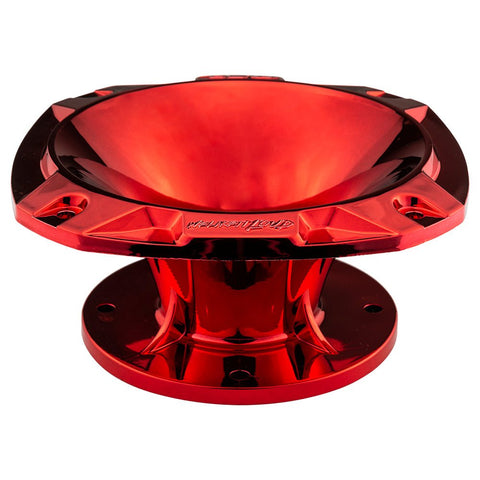

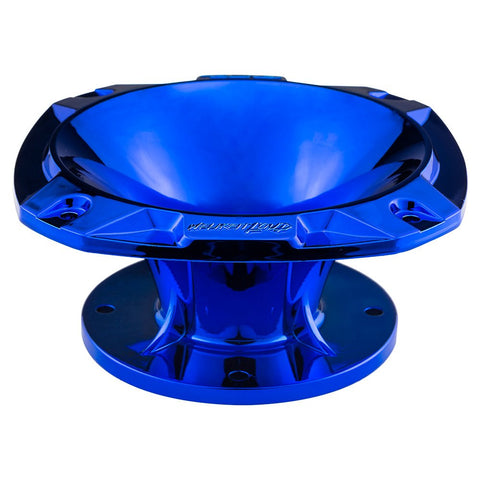

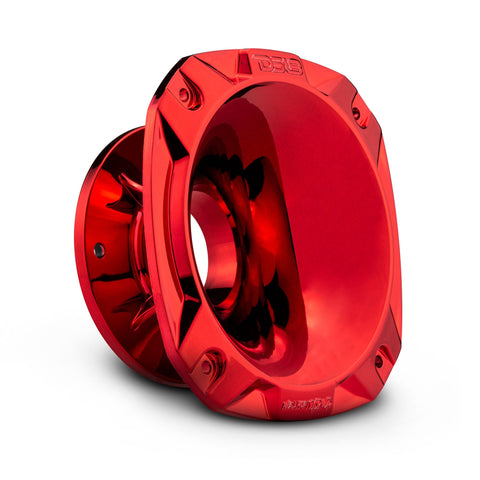

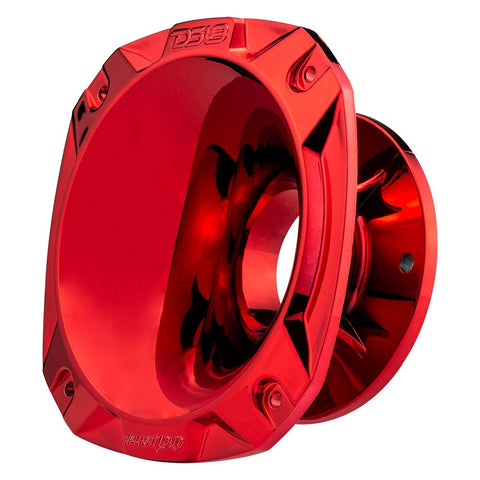

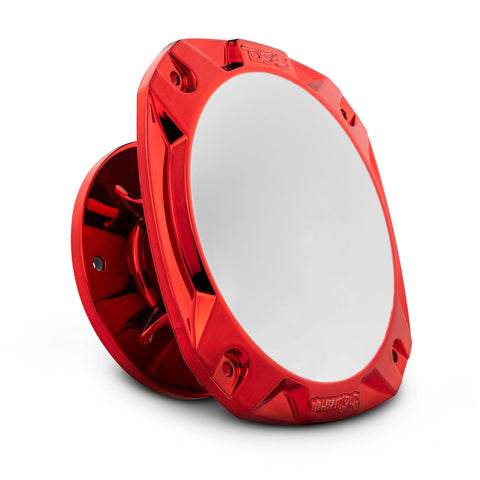

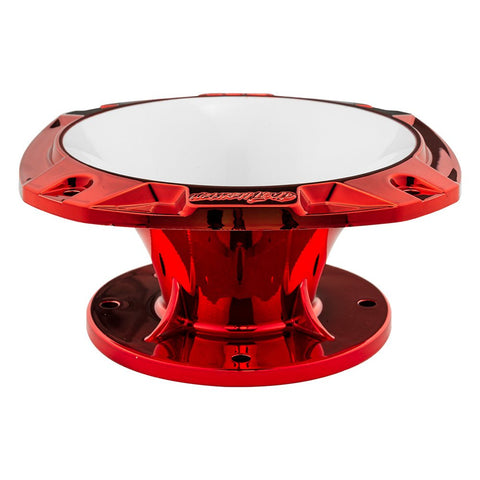

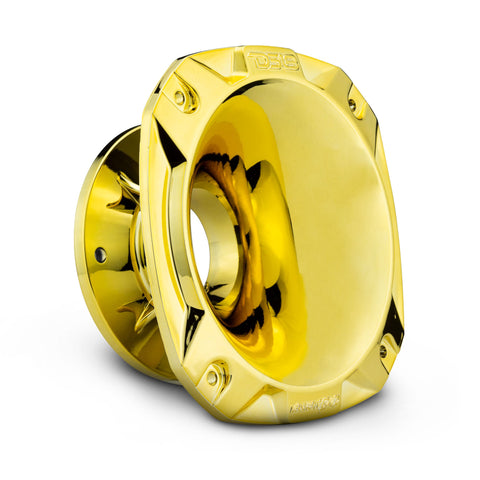

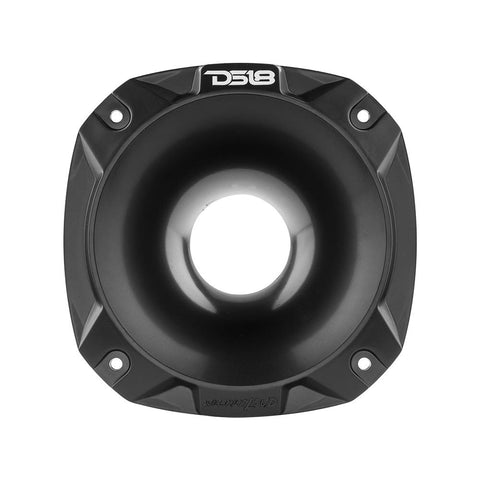

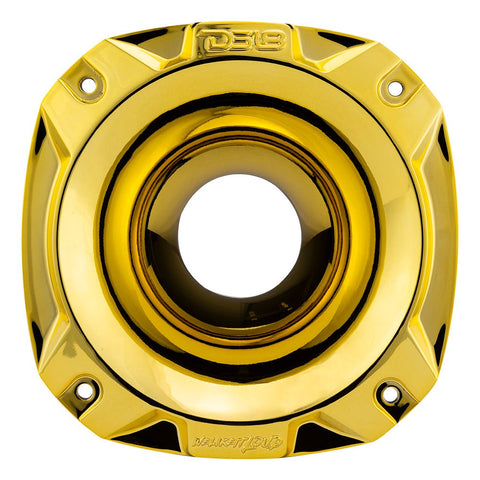

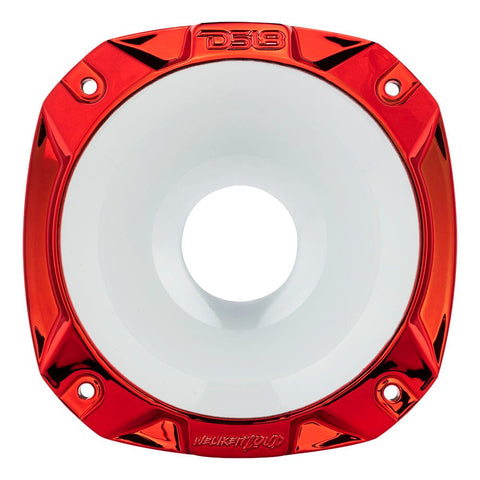

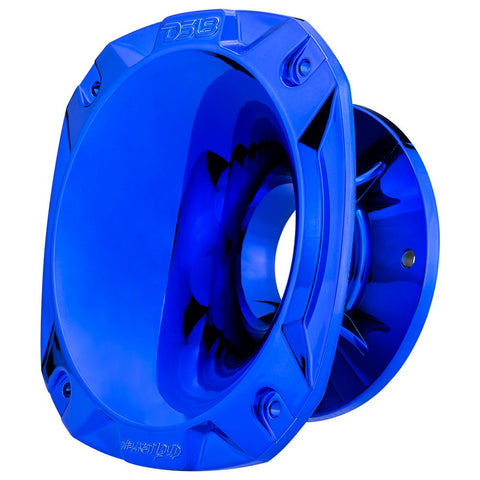

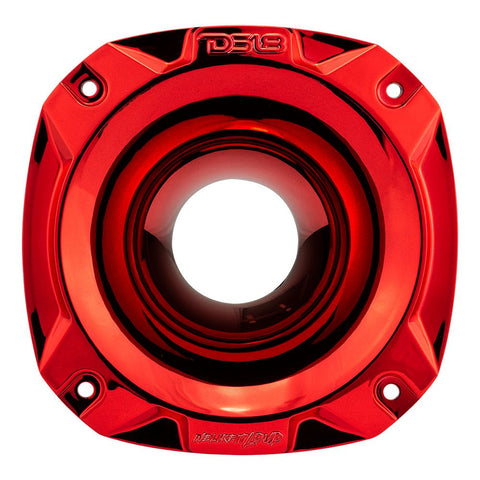

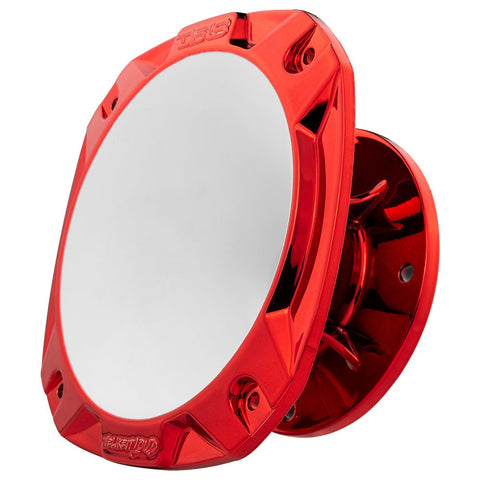

To give your system a more polished look, DS18 is offering the PRO-HP52 in five unique colors: Black, Chrome Blue, Chrome Gold ,Chrome Red and Chrome Red/White.

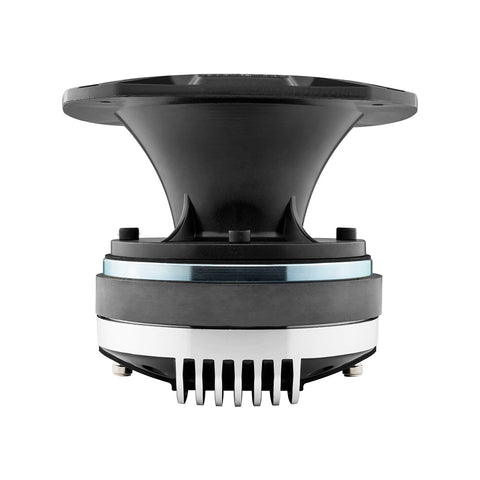

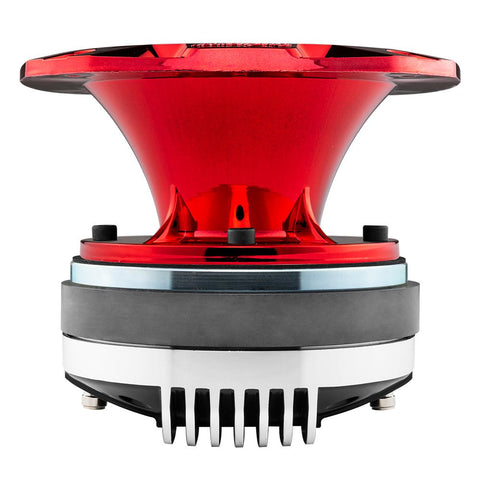

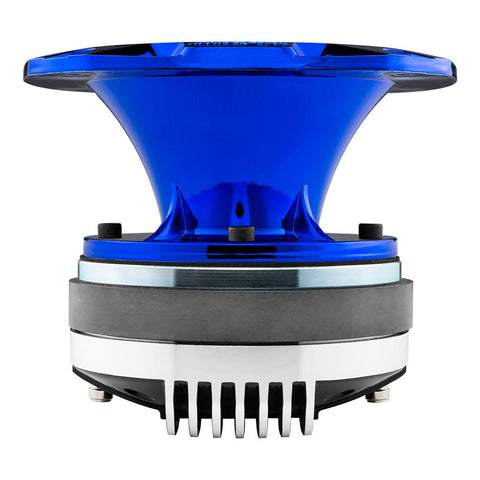

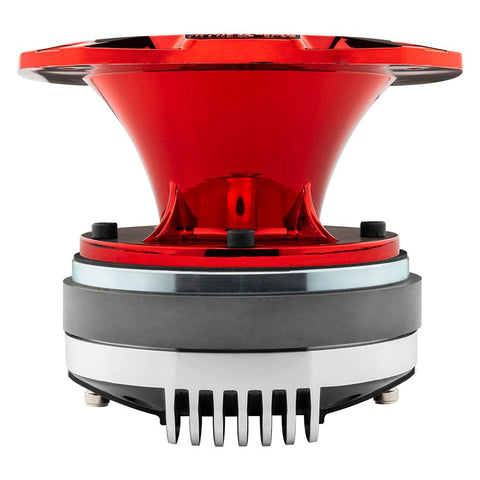

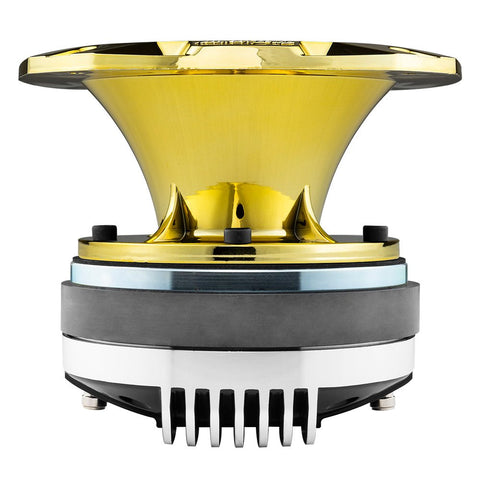

This bolt on throat requires a 4-bolt pattern on your driver to be installed correctly.
Never sacrifice your systems space for directional sound again with the PRO-HP52!
Highlights
- ABS Plastic Frame
- Shorter style horn to save mounting depth space but still get tons of directional volume
- 4 bolt pattern for comparability for most bolt on drivers
Great For
- Stunt Walls
- Car Audio
Technical Details
| Installation Type | Bolt-on |
| Throat Diameter: | 2 / 50.8mm |
| Nominal Horn Diameter: | 6.5 |
| Sound Coverage: | 57° Rounded |
| Measurements: | |
| Overall Diameter: | 7.08 / 180mm |
| Overall Depth: | 2.96" / 75.25mm |
| Mounting Depth: | 2.6 /66.04mm |
| Driver Bolt Pattern: | 4.05/ 102mm x 4-0.26 / 6.8mm |
| Mounting Bolt Pattern: | 6.3 / 161mm x 4- 0.21 / 5.5mm |
| Mounting Hole Diameter: | 5.43" / 138mm |
